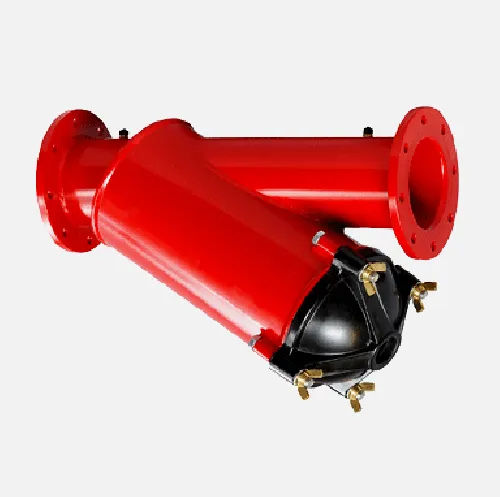

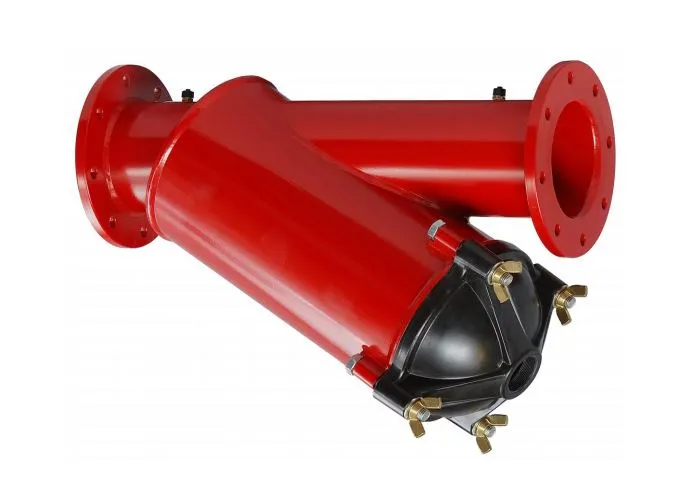

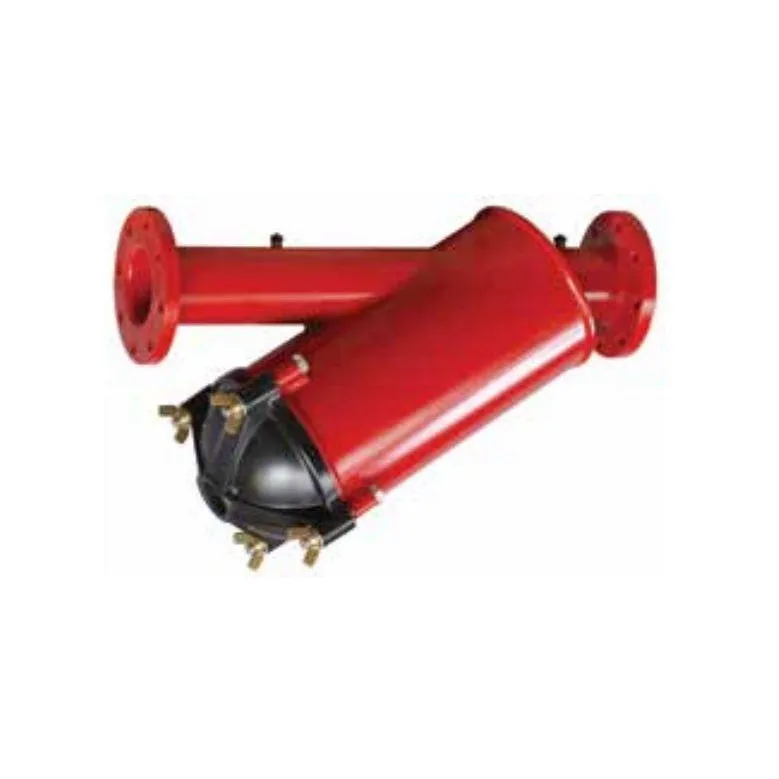

Amiad Compact 150mm Flanged Manual Steel SS Weavewire Screen FIlters with 2800cm² Filtration Area

The Amiad 6" Compact Filter series of manual filters remove dirt and debris from water as it flows through a stainless steel filtration element. This consists of a perforated cylinder or a weave-wire screen. Filtration elements are available for various degrees of filtration and are color coded for convenient identification. Water flows through the filter element from the inside-out so that dirt and debris accumulate on the inside surface. The direction of flow is indicated by an arrow on the filter housing. The 4"-S and the 6"-C manual steel filters have to be cleaned manually. For optional accessories for automatic or semi-automatic operation please consult your Amiad dealer.

FEATURES

Interchangeable filter elements for wide range of flow rates, filtration degrees and applications
High quality polyester coating as well as stainless steel housings for chemical durability and corrosion resistance
Low pressure loss
Easy to install and maintain, no tools required for rinsing
Available with exclusive features for semi-automatic cleaning
Innovative add-on clogging indicator

SPECIFICATIONS

Maximum flow rate: 160m3h
Filtration area: 2800cm²
Inlet/outlet diameter: 150mm (flanged)
Max operating pressure: 10 Bar (145 PSI)
Max operating temperature: 60°C
Drain port: 50mm (2") unplugged
Weight empty (flanged): 43kg
Filter housing construction: SMC Polyester
Filter lid construction: NBR
Seals: Carbon steel 37-2 with polyester coating
Weavewire screen: Stainless Steel 316 with polypropylene fiber glass and NBR seals
