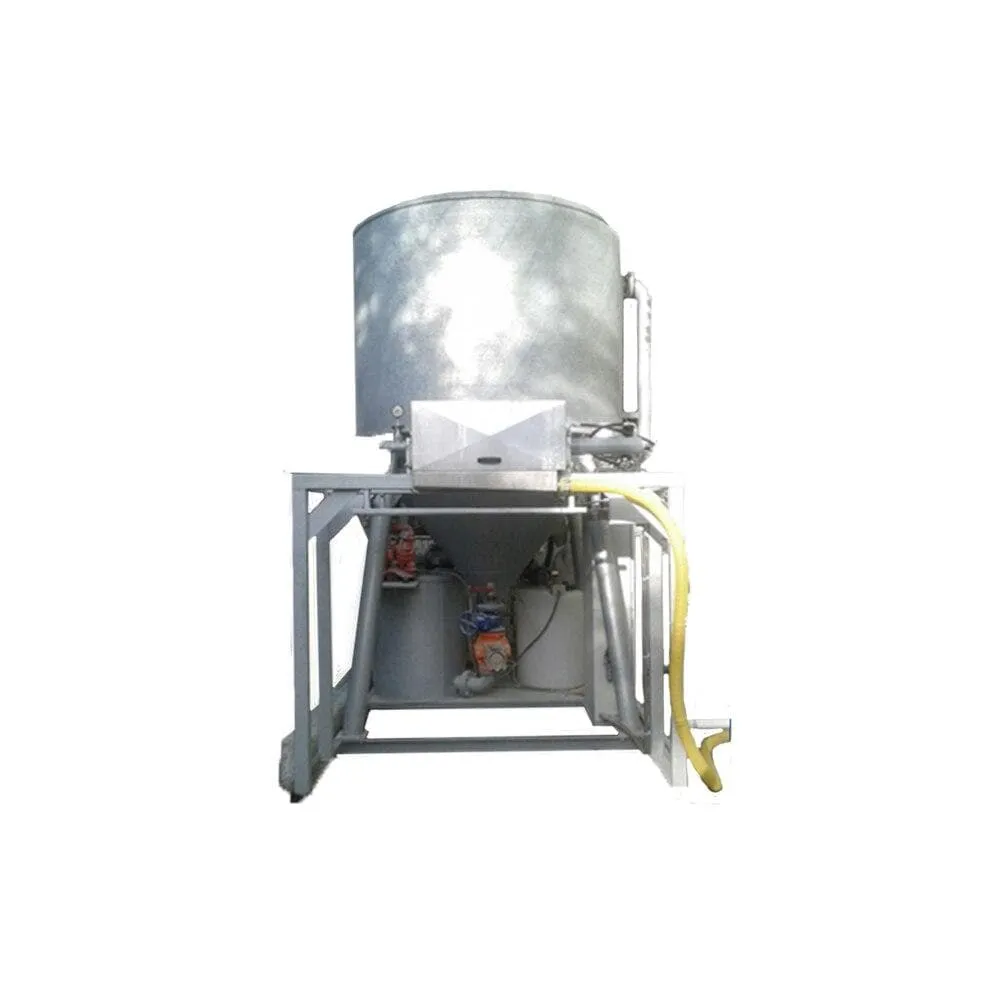

Compact Wastewater Plant water recycling system assists stone fabricators with handling the water filtration cycle during stone fabrication in shops all over the world.
Call for larger projects
| Compact Wastewater Plant Technical Specifications | ||||
|---|---|---|---|---|
| Plant Model | Clarifier Volume | Flocculant Volume | Safety Valve | Filter Press |
| 66 GPM Compact | 1,849 Gallons | 60 Gallons | DN100 | AS300/4P Filterpress |
| 3,434 Gallons | 140 Gallons | DN100 | AS300/8P Filterpress | |
| 198 GPM Compact | 4,755 Gallons | 140 GPM | DN100 |
AS400/8P Filterpress |
If you are thinking of starting a granite fabrication shop, be sure to check out this 132 gallons per minute compact water recycling system. This water recycling system assists stone fabricators with handling the water filtration cycle during stone fabrication in shops all over the world.
The 132 GPM Compact Water Recycling System installs inside or outside of the processing facility. It can be installed inside the fabrication shop because of its compact size. The 132 GPM Stone Water Recycling System functions like a traditional system and is available with or without the optional accessories. For example, this compact slurry filtration machine for fabricating granite is available in galvanized carbon steel or stainless steel.
132 GPM Compact Component List
The components that are included on this stone fabrication wastewater treatment plant, are as follows:
- Hot-galvanized or Stainless Steel AISI 304
- 3,434 Gallon Clarifier
- 4" Safety Manual Shutter
- 4" Pneumatic Valve
- 140 Gallon Flocculants Unit
- Mixing Slurry Tank
- Filter press Diaphragm Pump
- Mud Extraction Valve
- AS300/8P Automatic Filter Press
- Submerged Pump
- Electrical Control Panel
132 GPM Optional Components
As mentioned above, this machine has optional accessories that are available. These options are as follows:
- Clean Water Storage Tank
- Launching Pumps
- Coagulant Unit
- pH Checking
- Fine Filters
198 GPM Compact Component List
The components that are included on this stone fabrication wastewater treatment plant, are as follows:
- Hot-galvanized or Stainless Steel AISI 304
- 4,755 Gallon Clarifier
- 4" Safety Manual Shutter
- 4" Pneumatic Valve
- 140 Gallon Flocculants Unit
- Mixing Slurry Tank
- Filter press Diaphragm Pump
- Mud Extraction Valve
- AS400/8P Automatic Filter Press
- Submerged Pump
- Electrical Control Panel
198 GPM Optional Components
As mentioned above, this machine has optional accessories that are available. These options are as follows:
- Clean Water Storage Tank
- Launching Pumps
- Coagulant Unit
- pH Checking
- Fine Filters
66 GPM Compact Component List
The components that are included on this stone fabrication wastewater treatment plant, are as follows:
- Hot-galvanized or Stainless Steel AISI 304
- 1,849 Gallon Clarifier
- 4" Safety Manual Shutter
- 4" Pneumatic Valve
- 60 Gallon Flocculants Unit
- Mixing Slurry Tank
- Filter press Diaphragm Pump
- Mud Extraction Valve
- AS300/4P Automatic Filter Press
- Submerged Pump
- Electrical Control Panel
66 GPM Optional Components
As mentioned above, this machine has optional accessories that are available. These options are as follows:
- Clean Water Storage Tank
- Launching Pumps
- Coagulant Unit
- pH Checking
- Fine Filters
